Description

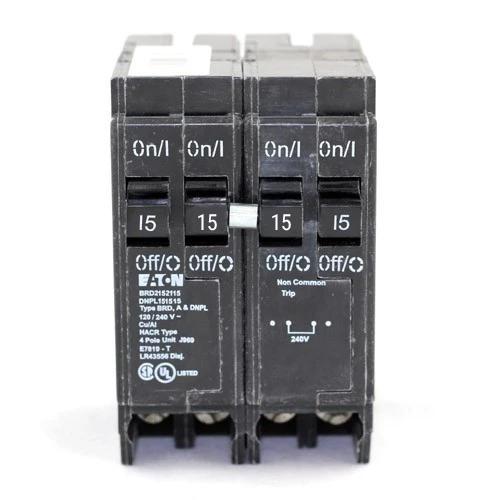

Specifications:
- Amperage ratings: 15 A + 15 A + 15 A + 15 A (quad‑module configuration)
- Poles: Four poles — two single‑pole 15 A on outer positions, one two‑pole 15 A in centre (counts as 4‑pole assembly)
- Voltage rating: 120/240 V AC
- Interrupting rating: 10 kA (10,000 A) at rated voltage
- Connection type: Plug‑in mount (Quadplex™ style)
- Module width: 2″ (space‑saving design)
- Application: Compatible with Eaton/Cutler‑Hammer BR/DNPL load‑centres for residential distribution
- Certifications: UL listed, CSA certified
