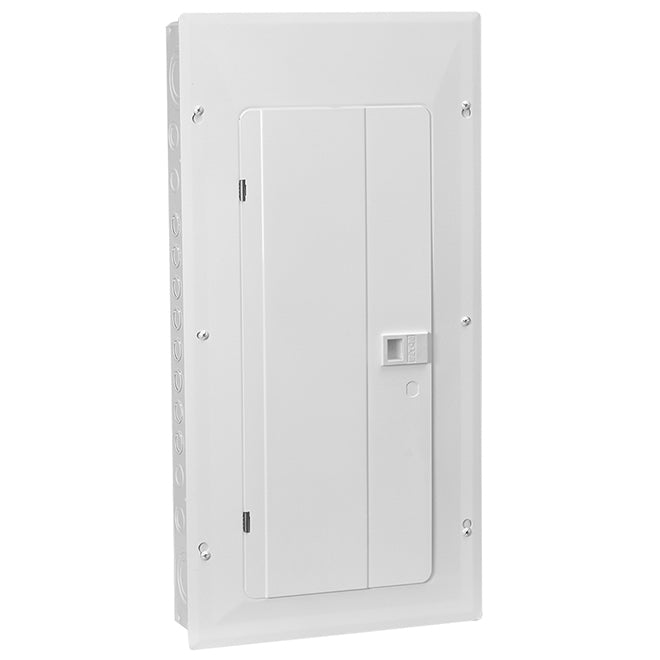

Eaton CBRPM130 Single Phase Main Breaker Load Center Main Breaker Loadcenter 100 A, 1 Ph, 120/240 Vac, Type 1 Steel

Specifications

• Brand Name: Eaton
• Item Name: Single Phase Main Breaker Load Center
• Type: Main breaker loadcenter
• Number of Circuits: 30
• Number of Spaces: 30/60
• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Phase: 1
• Mounting Type: Combination Flush/Surface
• Enclosure Type: Type 1
• Series/Model: BR
• Breaker Type: Main
• Wiring Configuration: 3‑Wire
• Neutral Type: Plug-On
• Conductor Size: 8‑1/0 AWG
• Construction: Steel
• Dimensions: 14‑3/4 in W × 3‑7/8 in D × 29‑1/8 in H
• Standards: UL 50, UL 67, CSA
