Description

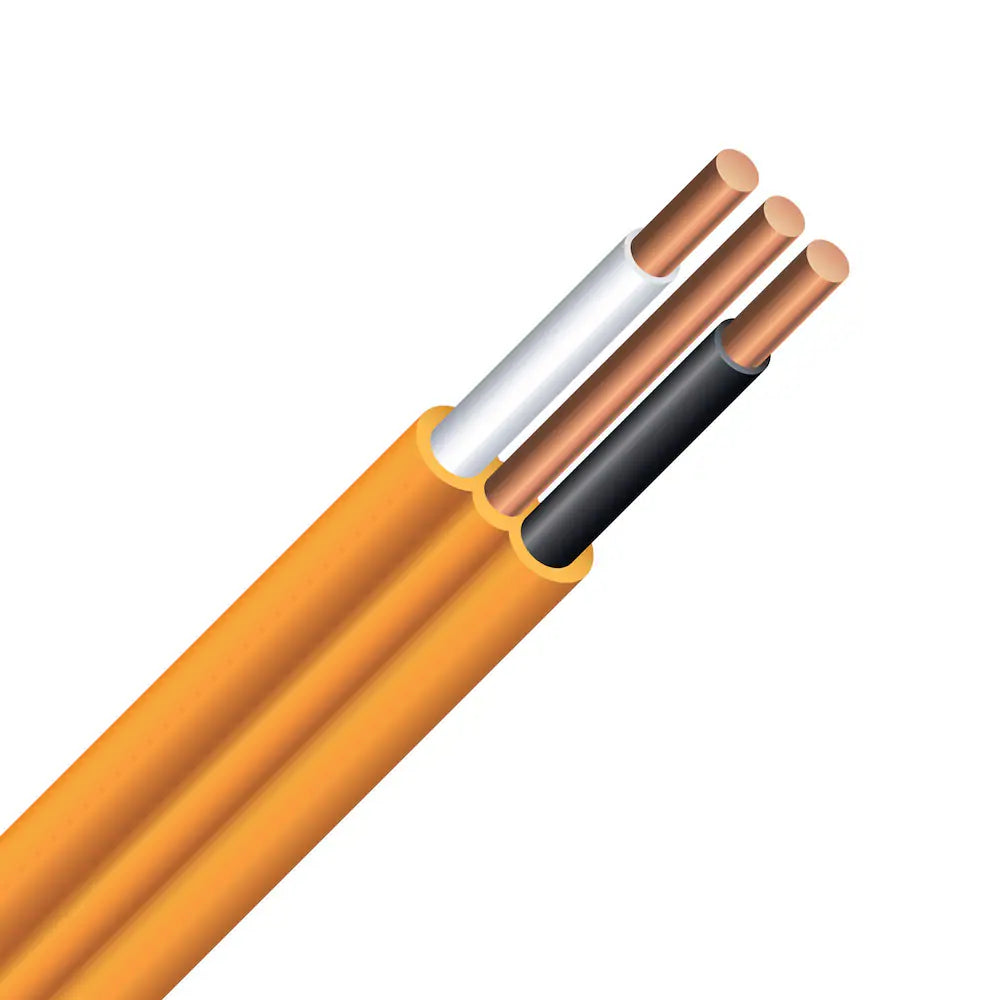

NMD90 cables are of a 2 or 3 3-conductor construction with an additional copper bonding wire. The conductors feature a PVC insulation with a protective nylon coating layer. Wire sizes 14 through 10 have solid copper conductors, while sizes 8 & 6 are a stranded copper construction (7 strands). This product is RoHS compliant.
APPLICATIONS - This cable is approved for use in dry locations when exposed and in dry or damp locations when concealed. The minimum recommended handling temperature is minus 25°C for 2 conductor cables and minus 10°C for 3 conductor cables, assuming suitable handling procedures. The maximum conductor temperature should NOT EXCEED 90°C.
