Description

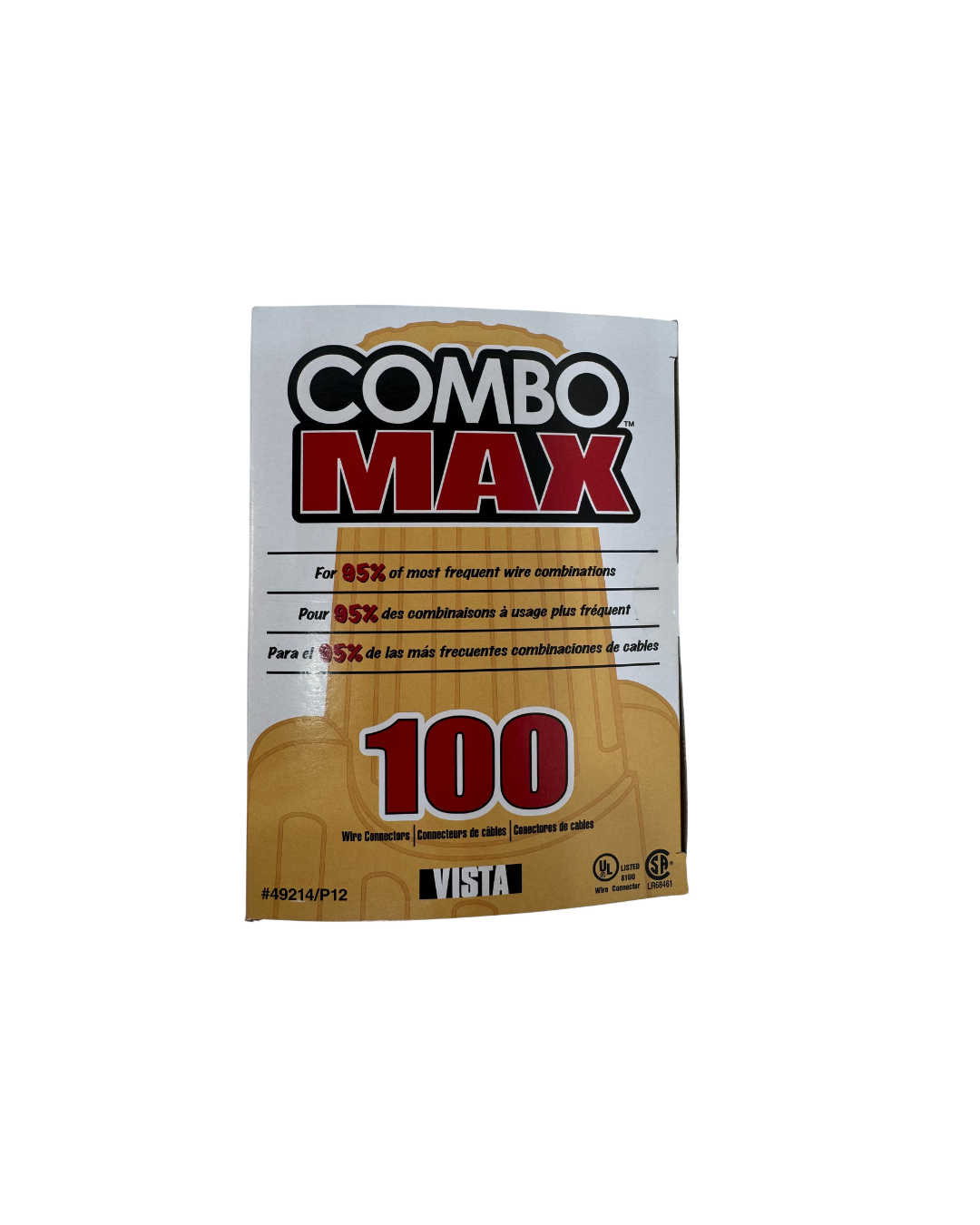

* For 95% of the most frequent wire connections.
Specifications:
- Wire size range: 22 AWG to 8 AWG (solid or stranded copper)
- Suitable wire combinations: minimum 3 × #22 AWG, maximum 3 × #10 AWG
- Voltage rating: 600 V AC
- Temperature rating: 105 °C (221 °F)
- Shell material: Flame‑retardant thermoplastic with swept wing design
- Internal spring: Square‑wire, wide‑mouth spring for enhanced wire grip
- Colour: bage
- Package/put‑up: Typically 175 units per jar
- Certifications: CSA approved, UL listed
- Application: General-purpose twist‑on wire connector for residential/commercial wiring
