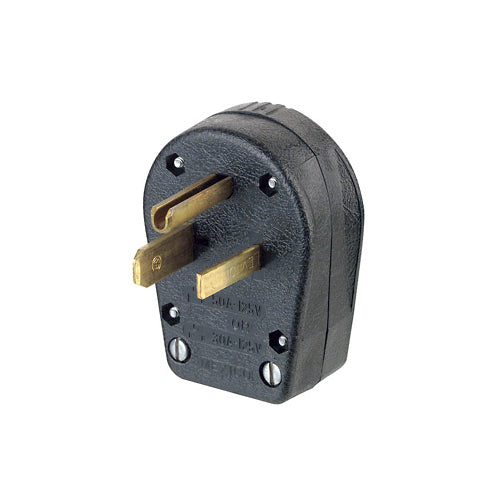

Leviton Universal Plug 30/50 Amp, 125 Volt, 2P, 3W, Plug, Straight Blade - 930-E

Product Specification — Leviton 930-E

• Model No.: 930-E
• Type: Dual-Amperage Universal Plug
• Amperage Rating: 30 A / 50 A
• Voltage Rating: 125 V AC
• Configuration: 2-Pole, 3-Wire with Ground
• NEMA: 5-30P / 5-50P
• Blade Style: Straight/Angle Blade, Grounding
• Cord Diameter Supported: ~0.630 - 1.050 in (~16 - 26 mm)
• Wire Range: #14 - #6 AWG
• Operating Temperature: -40 °C to +60 °C
• Dielectric Withstand: 2000 V per UL-498
• Material: Thermoplastic body, brass blades, steel screws
