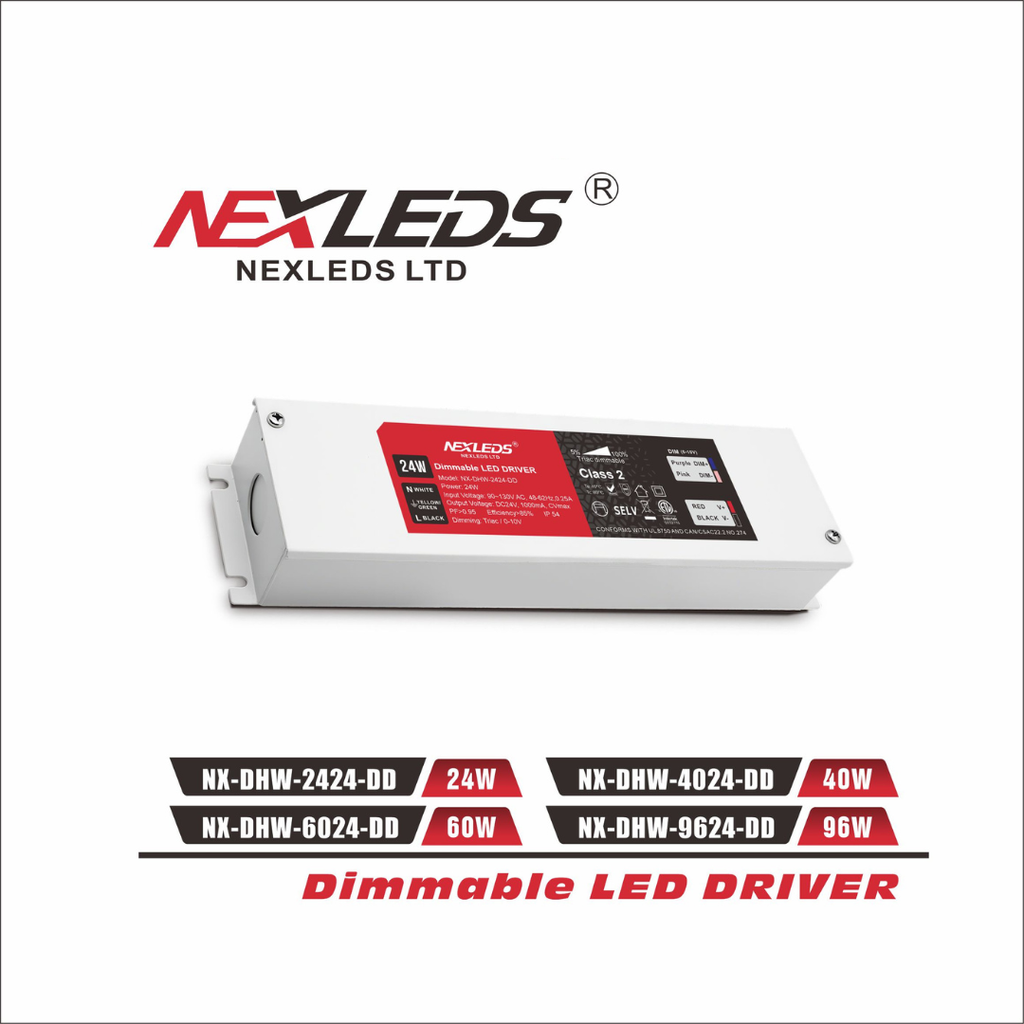

NEXLEDS 24V LED Driver - CLass 2 - IP54

NX-DHW-2424-DD | NX-DHW-4024-DD | NX-DHW-6024-DD | NX-DHW-9624-DD

• Product Name: LED Driver
• Wattage: 24W | 40W | 60W | 96W
• Voltage (Input): 90~130V AC, 48–62Hz
• Current (Input): 0.25A | 0.47A | 0.70A | 1A
• Output: DC 24V / 1000mA | 1670mA | 2500mA | 4170mA
• Power Factor: >0.95
• Efficiency: >85%
• IP Rating: IP54

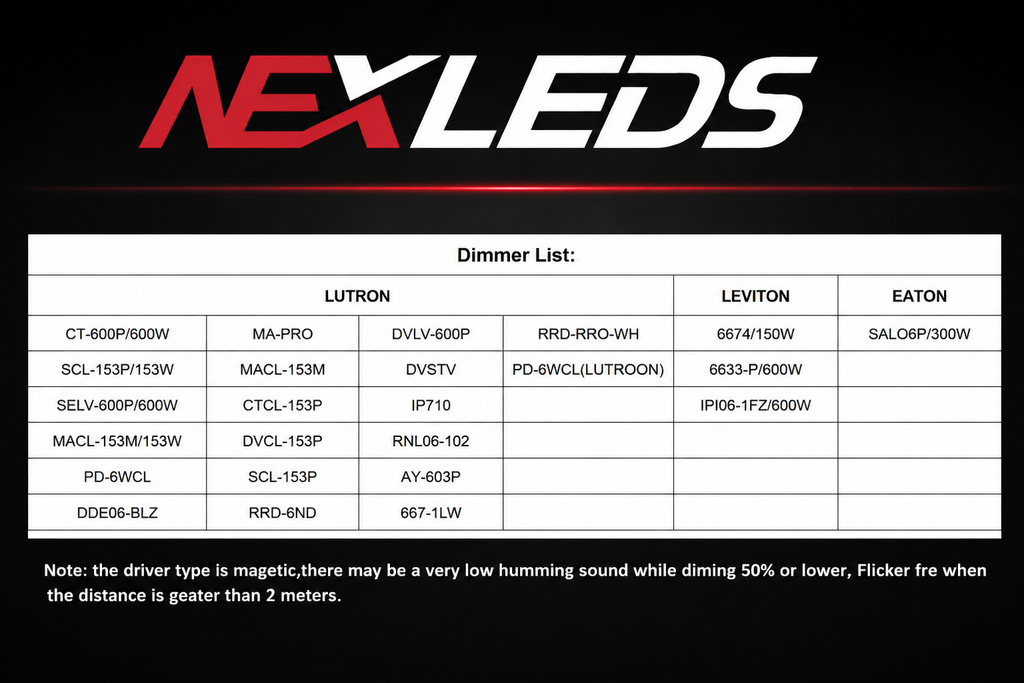

• Dimming: TRIAC and 0-10V magnetic DIMMABLE 24V
• Standard: ETL, Class 2
• Working Temp (Ta): 40 °C
• Case Temp (Tc): 80 °C
• Warranty: 5 years
