Description
Specification
Model No.:
NX-LAL2F-25W-L-DV-TCP-W | NX-LAL2F-25W-L-DV-TCP-B
NX-LAL4F-50W-L-DV-TCP-W | NX-LAL4F-50W-L-DV-TCP-B
NX-LAL6F-75W-L-DV-TCP-W | NX-LAL6F-75W-L-DV-TCP-B
NX-LAL8F-100W-L-DV-TCP-W | NX-LAL8F-100W-L-DV-TCP-B

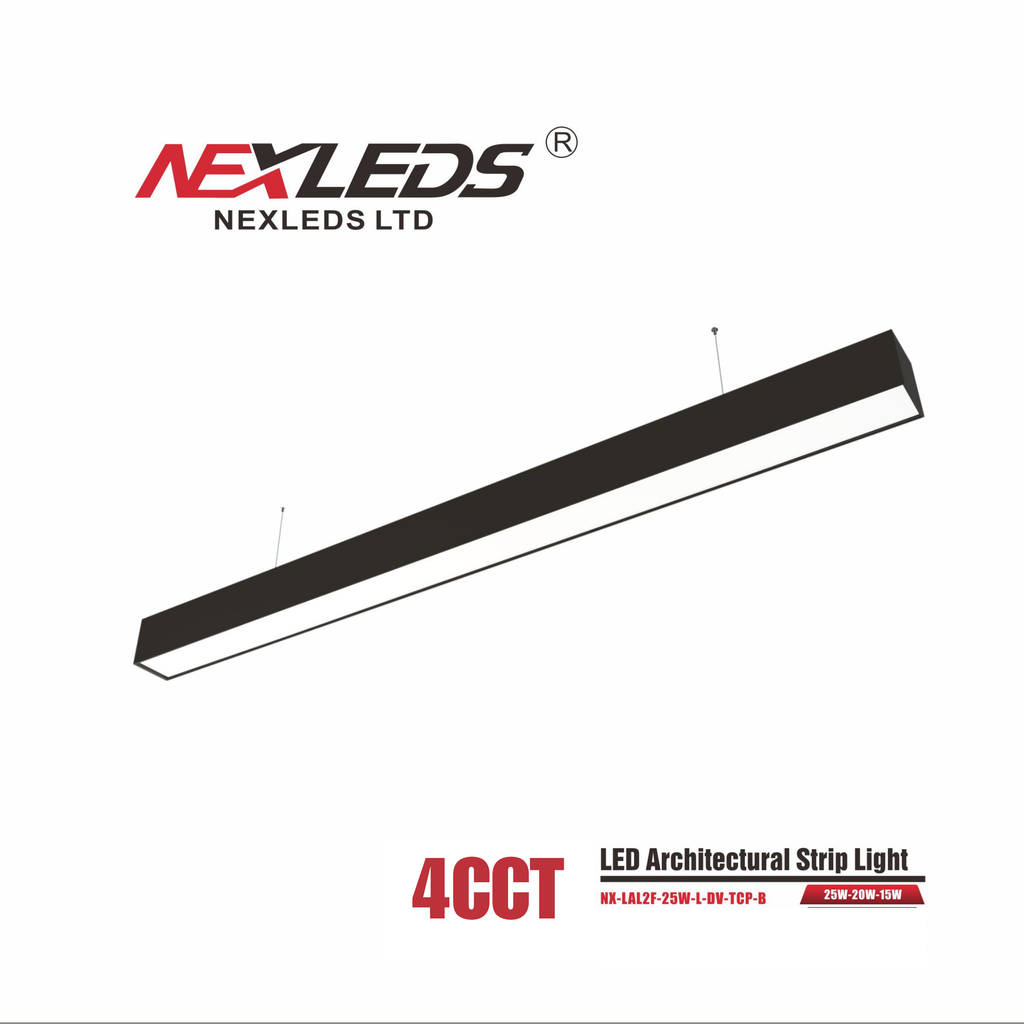

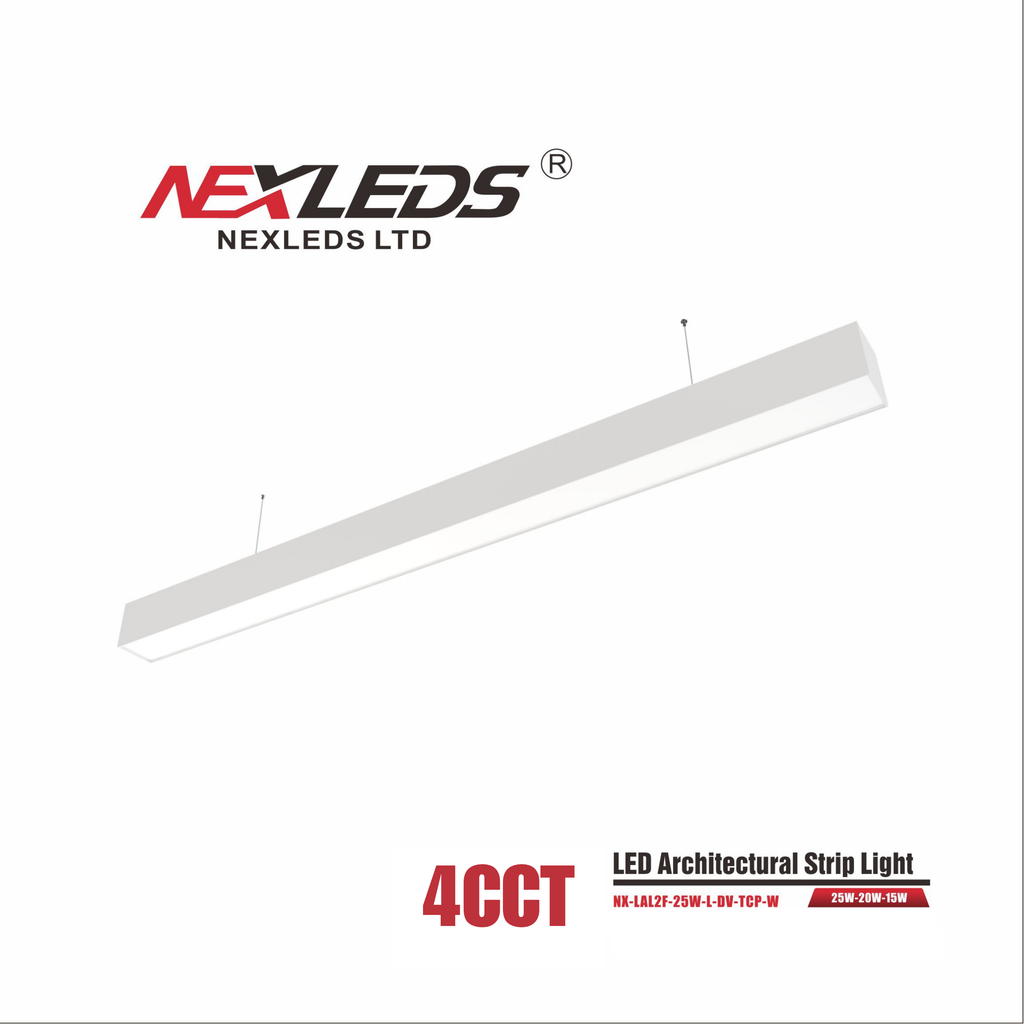

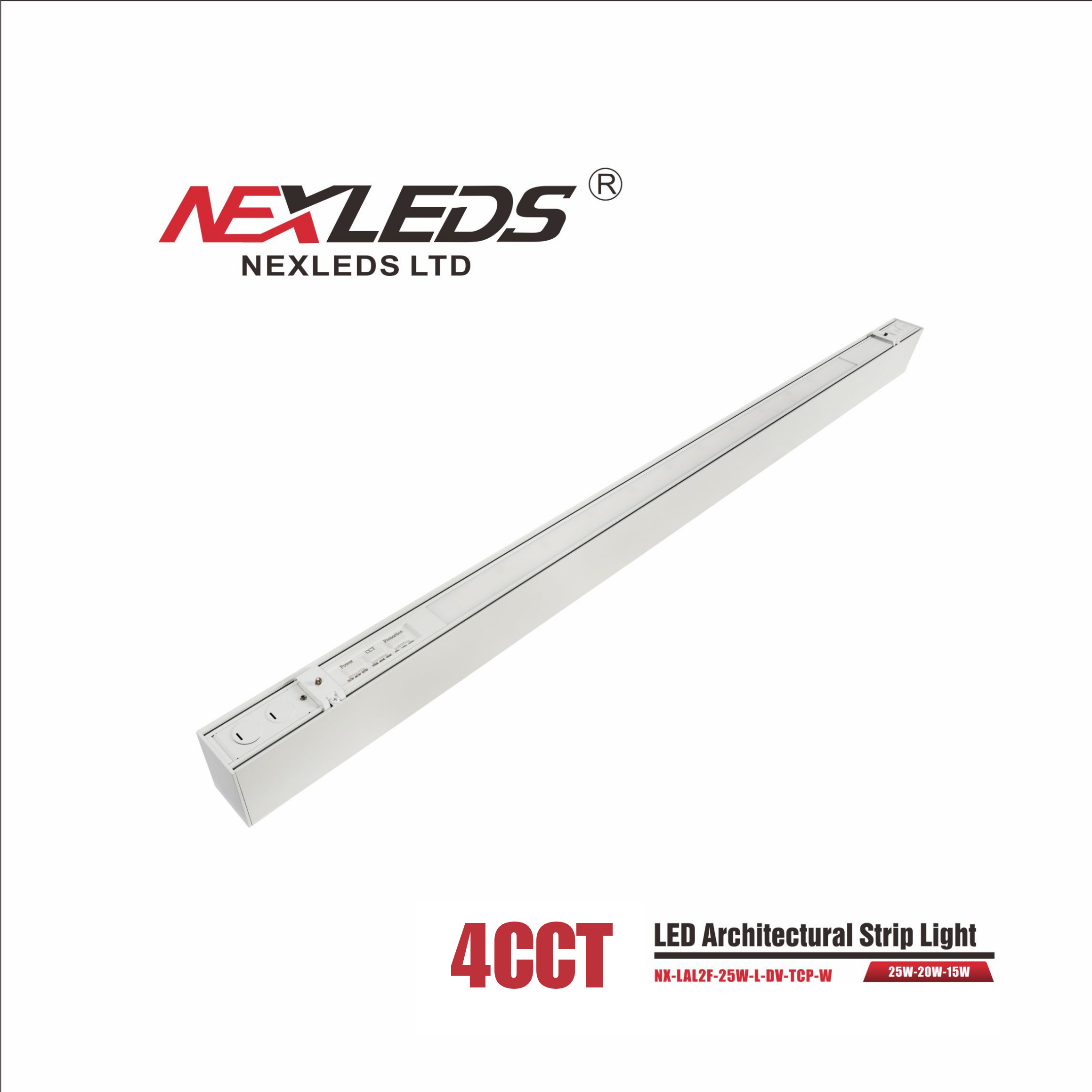

Type: LED Architectural Linear Light (Up & Downlight Adjustable)
Wattage:
- 15W / 20W / 25W (2ft)
- 30W / 40W / 50W (4ft)
- 45W / 60W / 75W (6ft)
- 60W / 80W / 100W (8ft)
Lumen Output:
- 1,725–2,875 lm (2ft)
- 3,450–5,750 lm (4ft)
- 5,175–8,050 lm (6ft)
- 6,900–11,500 lm (8ft)
CCT: 3000K / 3500K / 4000K / 5000K (4CCT switchable)
Voltage: AC 120–347V
CRI: >80
Beam Angle: >120°
Dimming: 0–10V dimmable
Operating Temp: –20 °C ~ +45 °C
Lifetime: 50,000 hrs
Warranty: 5 years
Finish Options: White | Black
Product Use: Damp Location
Size:
- 25" × 10" × 12" (2ft)
- 50" × 10" × 12" (4ft)
- 75" × 7" × 8" (6ft)
- 98" × 7" × 8" (8ft)
