Description
Model:
- NX-LHBS6-L3-165W/110W/80W-H-MV-TCP
- NX-LHBS6-L3-220W/165W/110W-H-MV-TCP

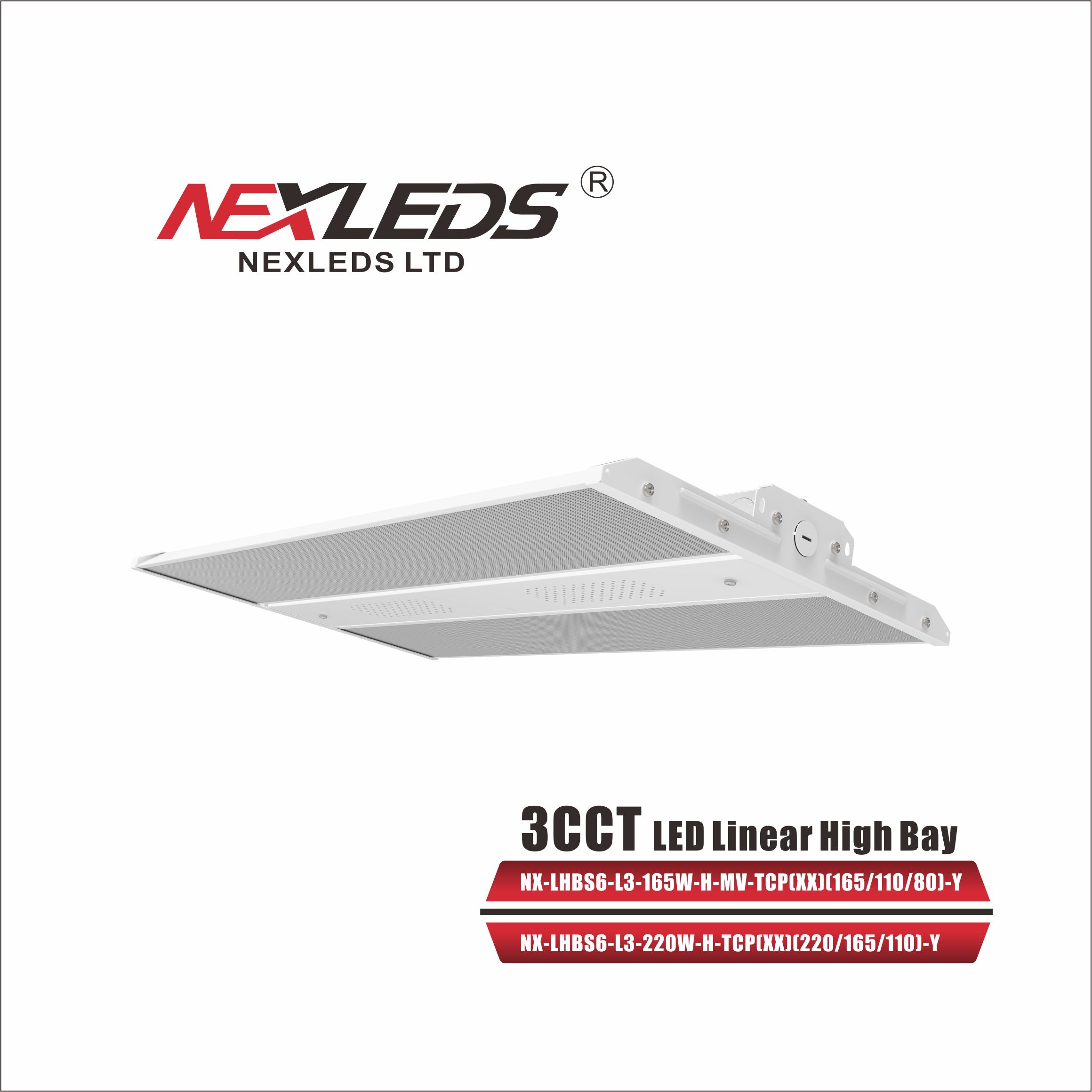

Type: Selectable Wattage Linear High Bay Light (1’×2’)
Wattage Options: 80 / 110 / 165 W | 110 / 165 / 220 W
Lumen Output: ~11,200 / 15,400 / 23,100 lm | ~15,400 / 23,100 / 30,800 lm
Voltage: 120–347 V AC
CCT Options: 3500 K / 4000 K / 5000 K (switchable)
CRI: >80
Efficacy: ~140 lm/W
Beam Angle: 90°
Dimming: 0–10 V dimmable
Operating Temp: –40 °C to +40 °C
IP Rating: IP42 (indoor/dust protected)
Finish: White
Lifetime: 50,000 hrs
Standard: UL listed
Warranty: 5 years
