Description
Specifications:

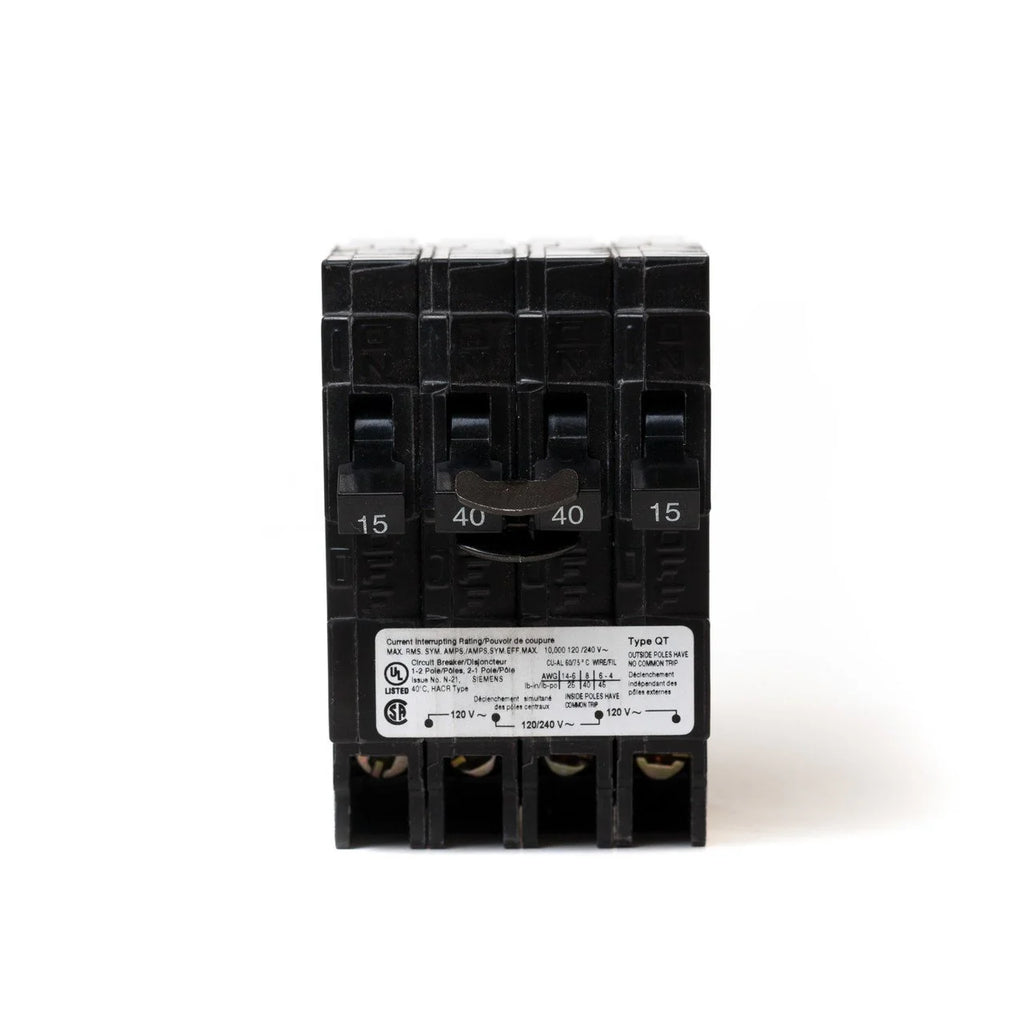

- Amperage ratings: 15 A + 40 A + 40 A + 15 A (quad‑breaker configuration)
- Poles: 2 (common trip double pole) with additional single‑pole units integrated
- Voltage rating: 120/240 V AC
- Interrupting rating: 10 kA at rated voltage
- Frame/type: Type QT/CTNC plug‑in style
- Connection type: Plug‑in mount
- Wire size range: #14 to #6 AWG copper/ aluminium
- Trip mechanism: Thermal‑magnetic
- Panel compatibility: For use in Siemens load‑centres (e.g., types EQ, EQL, SEQ, EQG, PL, ES)
- Standards: CSA approved and UL listed
