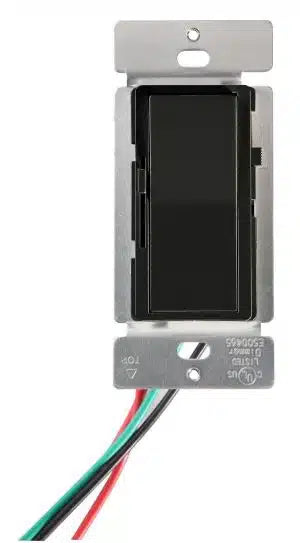

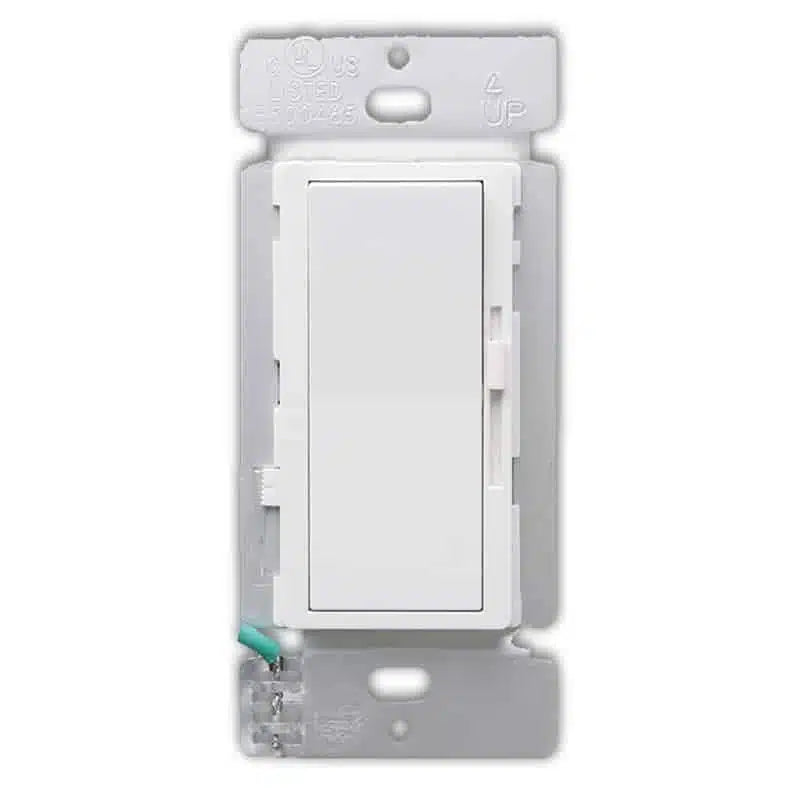

Votatec 150W 3Way Slide Dimmer – Class A

Product Specification — Votatec BAK-004AG / WH

• Model No.: BAK-004AG / WH
• Type: 3-Way Slide Dimmer, Class A
• Rated Voltage / Frequency: 120 VAC, 60 Hz
• Rated Power:
• 600 W Incandescent
• 150 W CFL & LED
• Insulation Resistance: > 10 MΩ (DC 500 V)
• Mechanical Life: 40,000 cycles
• Cable Specification: 18 AWG
• Operating Temperature: –20 °C to +60 °C
• Regulatory Standard: UL 1472
• Electrical Clearance:
• 1.2 mm between live parts
• 3 mm between live and other parts
• Creepage Distance: ≥ 3 mm
• Fire Rating: UL94-V2
• Color: White (WH)
• Weight: ~60 g
