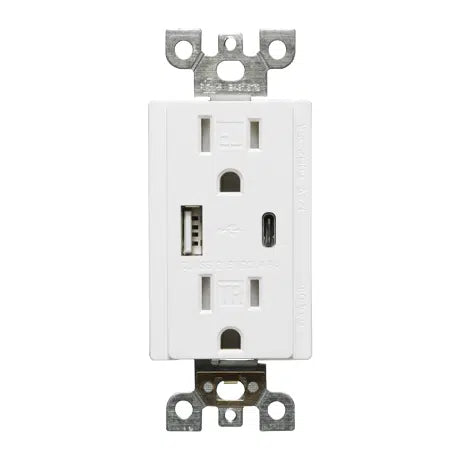

Votatec 15A Usb Charger & Duplex Receptacle (TR) Type A+C

Product Spec — Votatec Model BAA-015 (USB Charger & Duplex Receptacle, Type A + C)

• Model No.: BAA-015
• Type: A + C USB Charger & Decorative Duplex Receptacle (Tamper-Resistant)
• Insulation Resistance: > 50 MΩ (DC 500 V)
• Operating Temperature: –20 °C ~ 60 °C
• Dielectric (Electric Strength): 1,500 V AC (50 Hz) for 1 minute
• Wire Specifications: #14 – #10 AWG
• USB Output: 5 V DC, 4 A total
• Rated Voltage: 125 V AC / 60 Hz
• Rated Current: 15 A
• Housing Material: Flame-retardant polycarbonate (UL 94-V2)
• Standards & Certifications: UL 498, UL 943, CSA C22.2 No. 42, USB 1.0/2.0/3.0 compatible
• Mechanical Durability: ≥ 5,000 cycles (loop detection with unloaded plug
