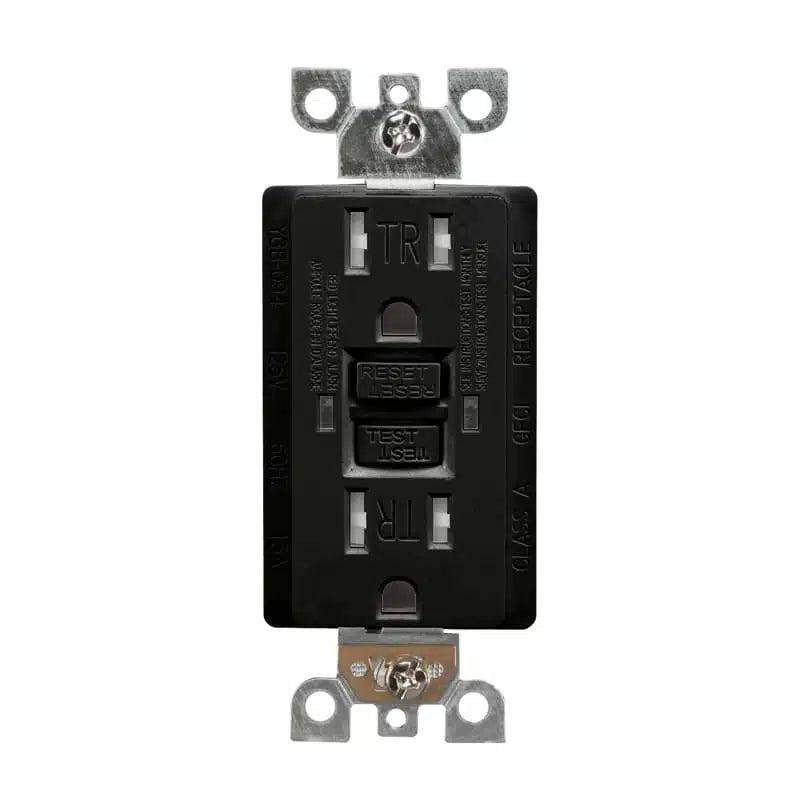

Votatec 15AMP Self-Test Tamper Resistant 15A GFCI Duplex Receptacle

Product Spec — Model YGB-094

• Model No.: YGB-094
• Type: Tamper-Resistant GFCI Receptacle
• Rated Voltage: 125 V AC / 60 Hz
• Rated Current: 15 A
• Operating Temperature: –35 °C to +66 °C
• Insulation Resistance: > 50 MΩ (measured at DC 500 V)
• Dielectric (Electric Strength): 1,500 V AC (50 Hz) for 1 minute
• Surge Current Protection: 6,000 V / 3,000 A and 6,000 V / 10 kA
• Tripping Threshold & Time: 5 mA trip within 25 ms
• Housing Material: Flame-retardant polycarbonate (UL94-V2 rated)
• Certifications: UL 498, UL 943, CSA C22.2 No. 42
• Mechanical Durability: ≥ 5,000 cycles (unloaded plug loop detection)
