Description
Model: VO-ARTF22W40-347-3Way-B-PX

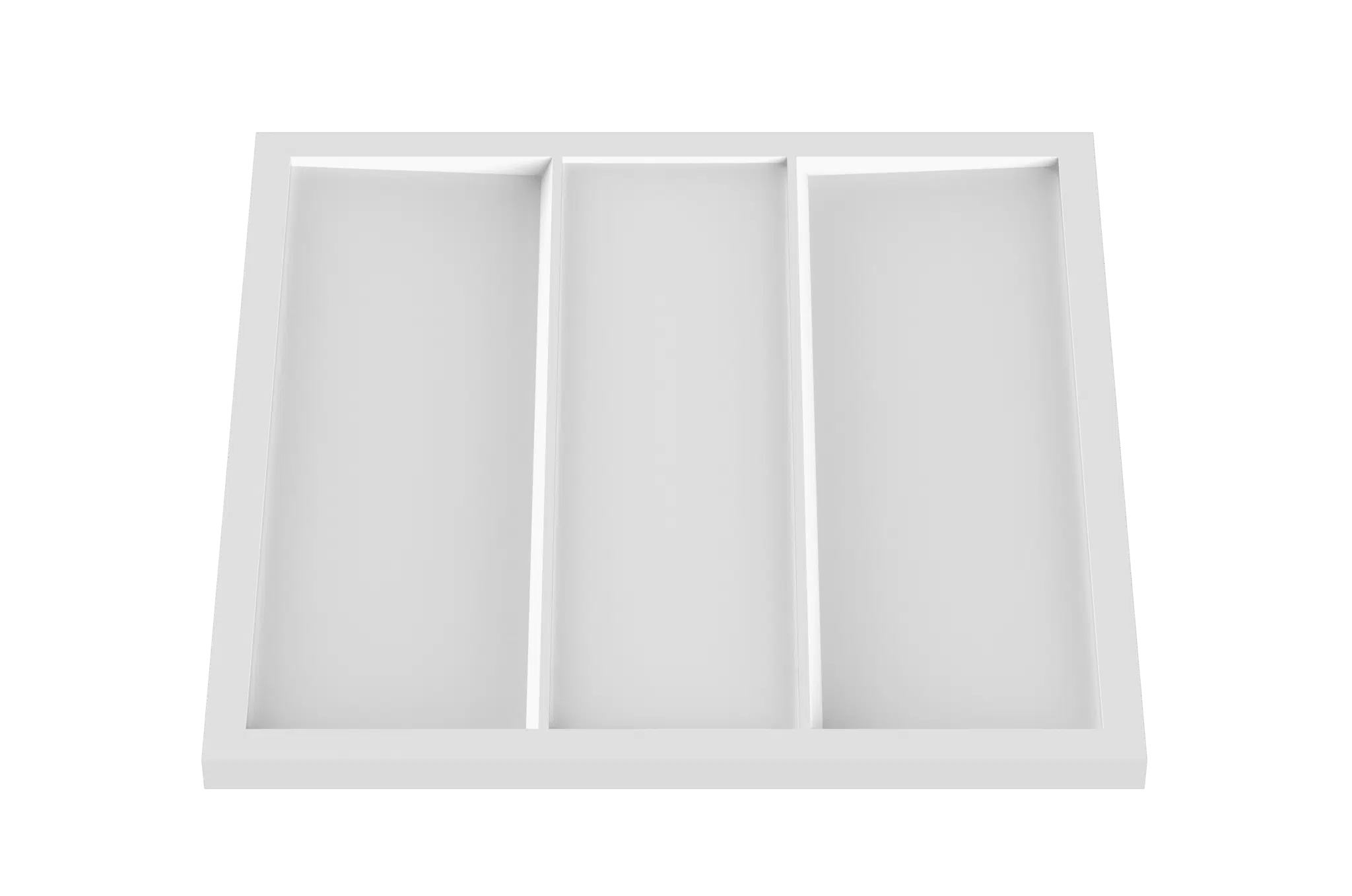

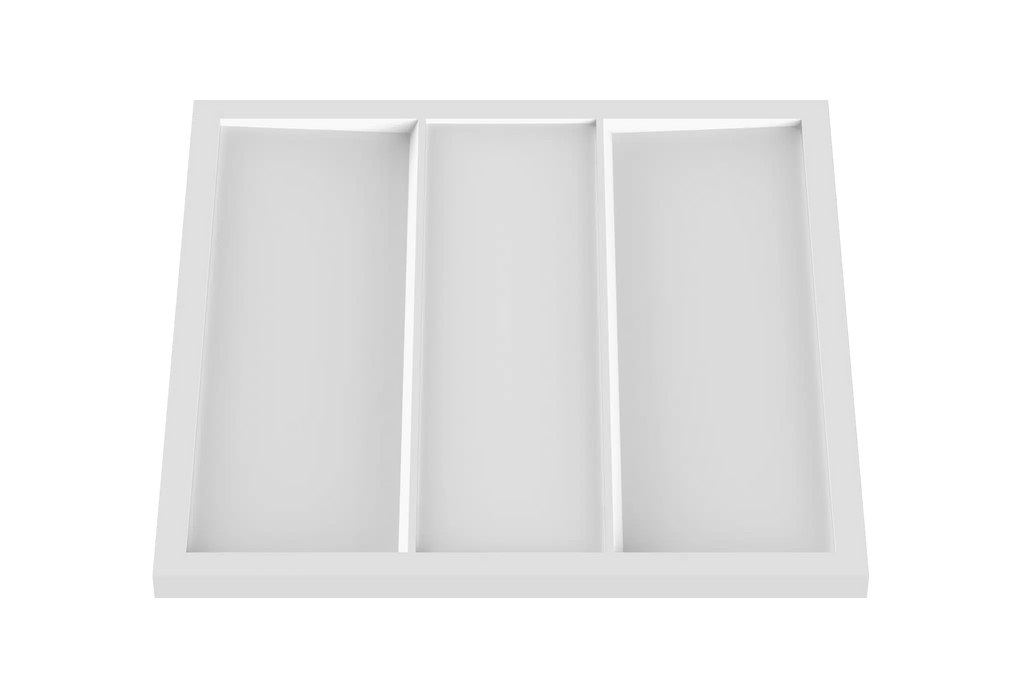

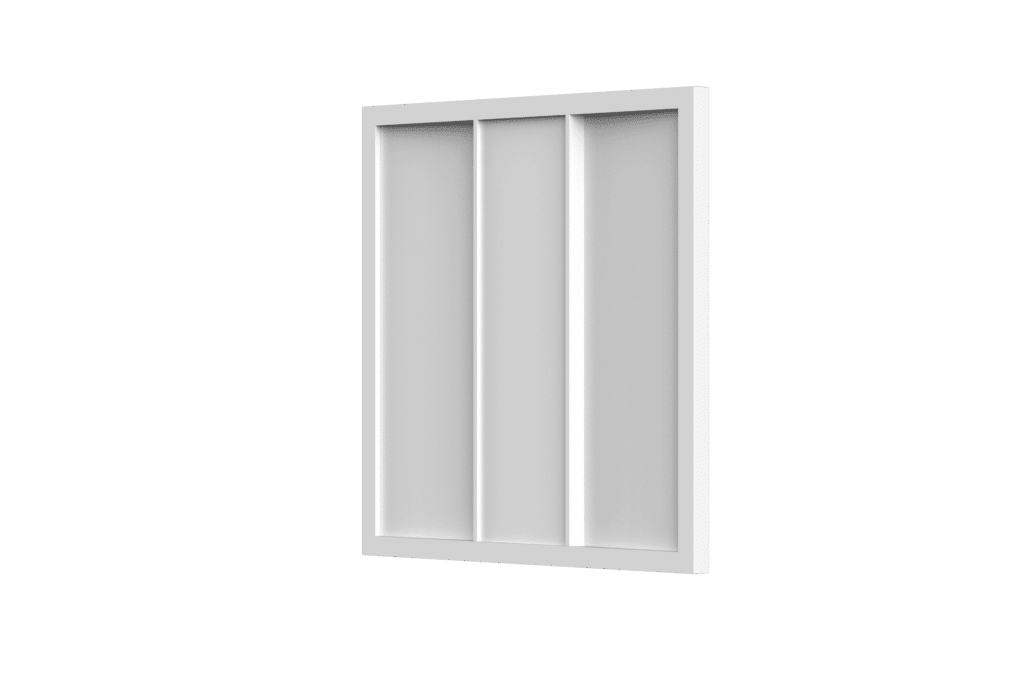

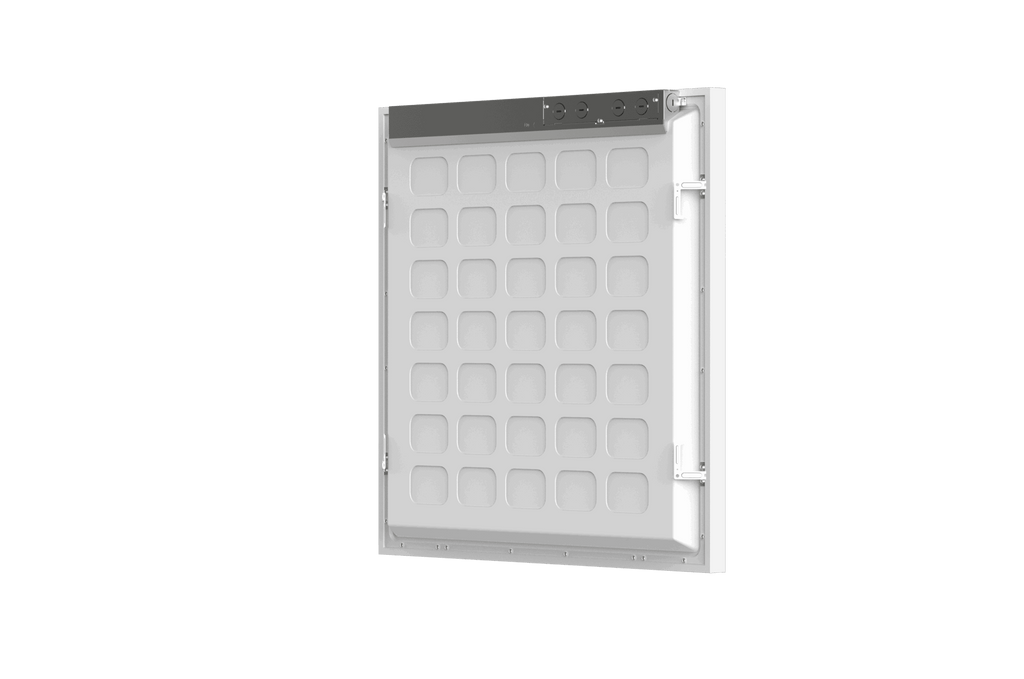

Type: Architectural LED troffer for recessed, surface, or suspended mounting
Wattage Options: 25 W / 30 W / 40 W (selectable)
Voltage: AC 120–347 V
Lumen Output: ~3,150 – 5,000 lm (depending on wattage)
Efficacy: ~125 lm/W
CCT Options: 3500 K / 4000 K / 5000 K (selectable)
CRI: >80
Beam Angle: 120°
Power Factor: >0.9
Dimming: 0–10 V dimmable
Dimensions: 23.7″ × 23.7″ × 2.25″
Rating: Suitable for indoor / damp locations
Grade of Protection: IP20
Operating Temperature: –20 °C ~ +40 °C
Lifetime: 50,000 Hours
Warranty: 5 Years
