Description
Model: VO-22W40-347-5Way-B-PX

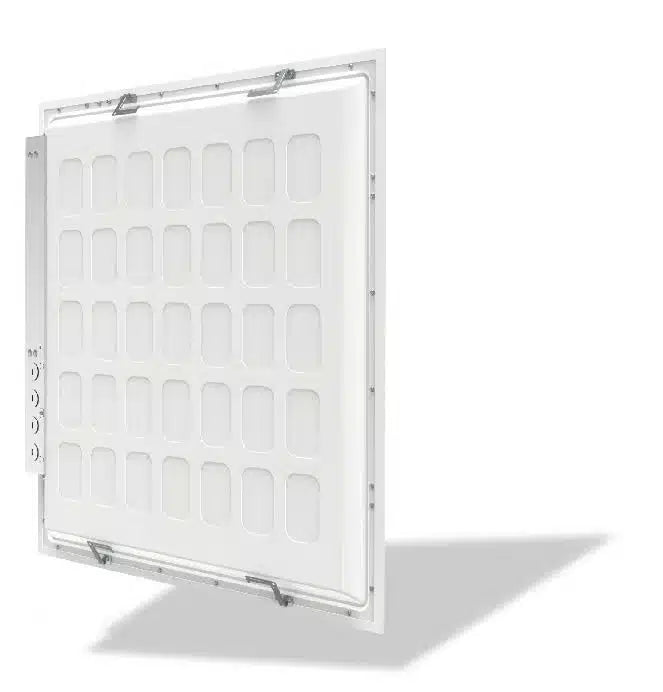

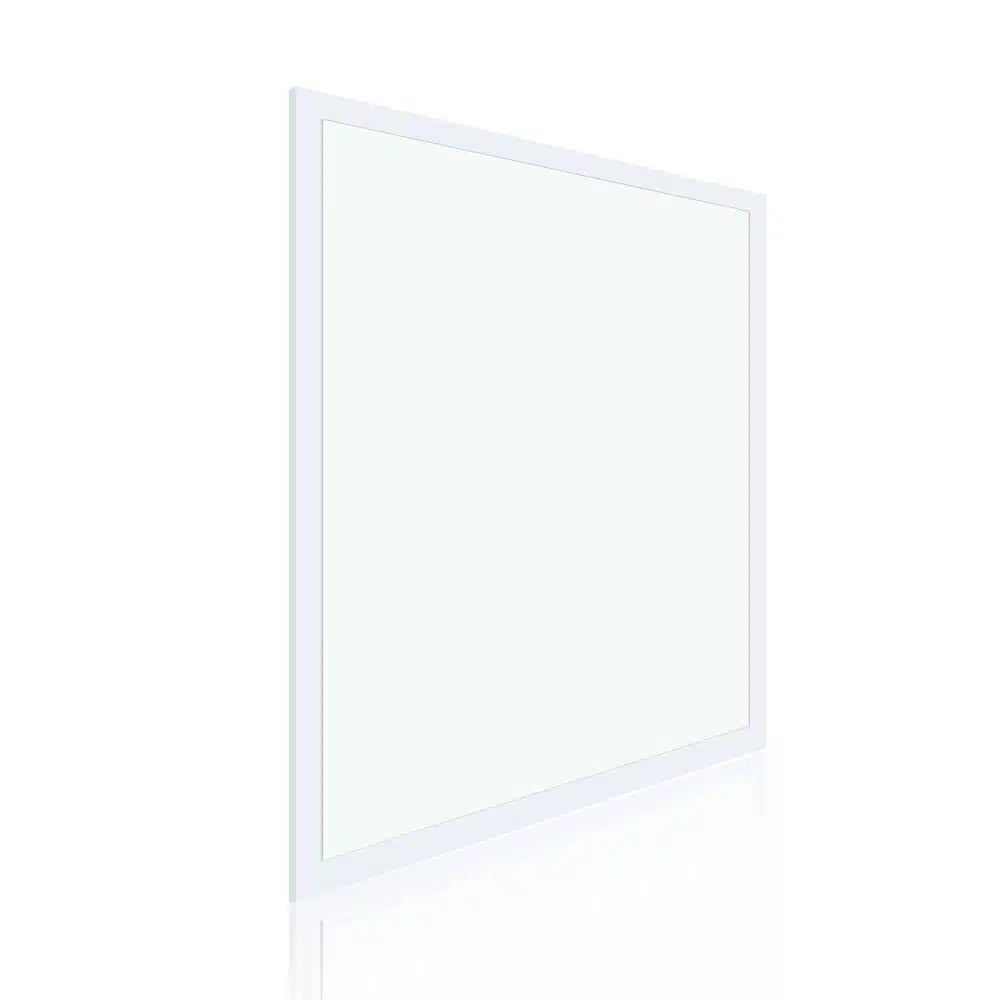

Type: Back-lit LED panel for recessed, surface, or suspended mounting
Wattage Options: 20 W / 25 W / 30 W / 35 W / 40 W (selectable)
Voltage: AC 120–347 V
Lumen Output: ~2,500 – 5,000 lm (depending on wattage)
Efficacy: ~125 lm/W
CCT Options: 3000 K / 3500 K / 4000 K / 5000 K / 6000 K (selectable)
CRI: >80
Beam Angle: 120°
Power Factor: >0.9
Dimming: 0–10 V dimmable
Dimensions: 2′ × 2′ × 1.49″
Rating: Suitable for indoor/damp locations
Grade of Protection: IP20
Operating Temperature: –20 °C ~ +40 °C
Lifetime: 50,000 Hours
Warranty: 5 Years
