Description
Model: VO-ARTF24W50-347-3Way-B-PX

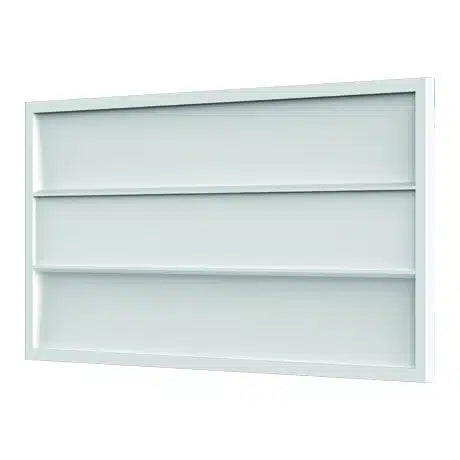

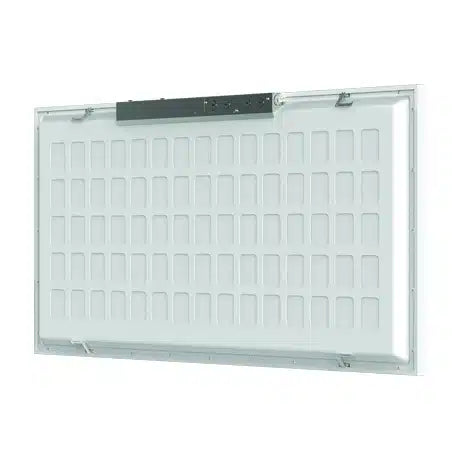

Type: Architectural troffer panel (for recessed, surface or suspended installation)
Wattage Options: ~30 W / 40 W / 50 W (selectable)
Voltage: AC 120-347 V
Lumen Output: ~3,750 lm at 30 W, ~4,960 lm at 40 W, ~6,150 lm at 50 W.
Efficacy: ~125 lm/W
CCT Options: 3,500 K / 4,000 K / 5,000 K (adjustable)
CRI: > 80
Beam Angle: ~120°
Power Factor: > 0.9
Dimming: 0-10 V driver
Dimensions: ~23.7″ × 47″ × 2.25″ thick
Rating: Indoor / damp location
Grade of Protection: IP20
Operating Temperature: approx. –20 °C to +40 °C
Lifetime / Rated Life: ~50,000 hours (L70)
Warranty: 5 years
