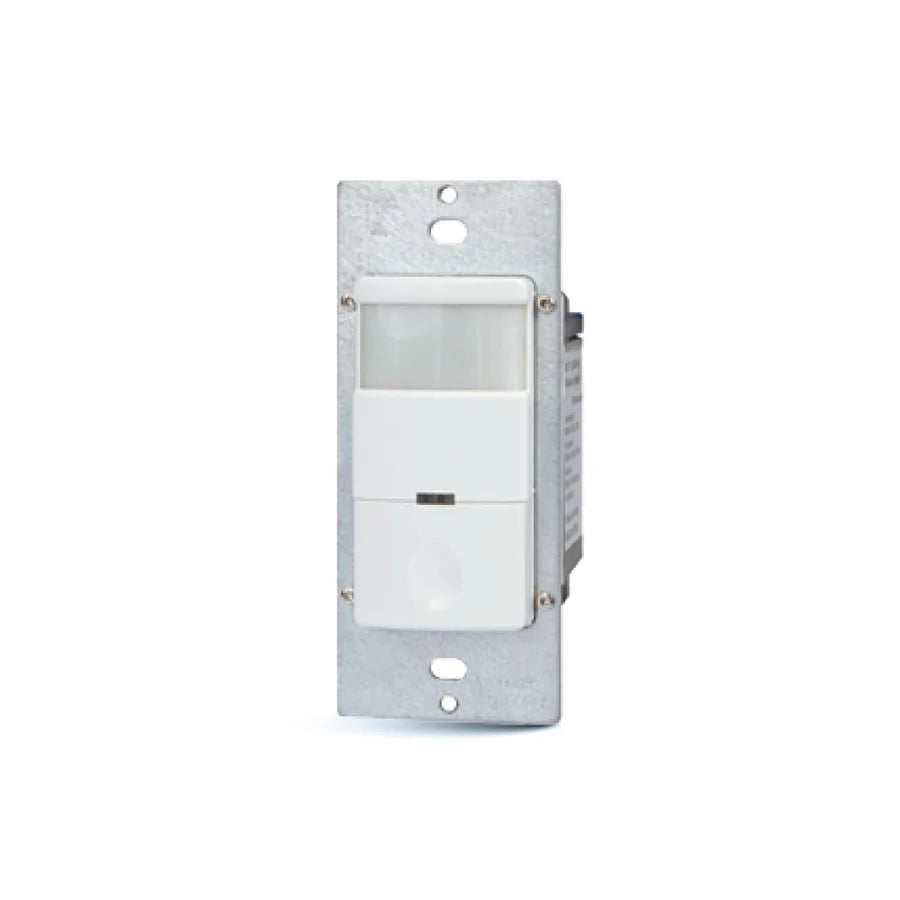

12-amp passive infrared sensor with integrated ambient light level detection for precise motion-based control and energy-efficient lighting management.

HIGHLIGHTS

• Single Relay Functionality Operates like a single pole switch
• Occupancy-Based Activation Turns the load on and keeps it active while motion is detected
• Automatic Shutoff Load turns off after the preset time delay once no motion is detected
• Heat Differential Detection Senses motion by detecting changes in heat between a moving human body and the surrounding environment

• Specifications

  • Wattage
    800W
  • Motor
    1/4HP
  • Time Delay
    15 sec ~ 30 min
  • Light Level
    30 Lux — Daylight
  • Ballast
    800VA
  • Resistive
    12A
  • Operating Voltage
    AC 120V/60Hz
  • Operating Temperature
    0°C ~ +55°C
  • Case Quantities
    40
